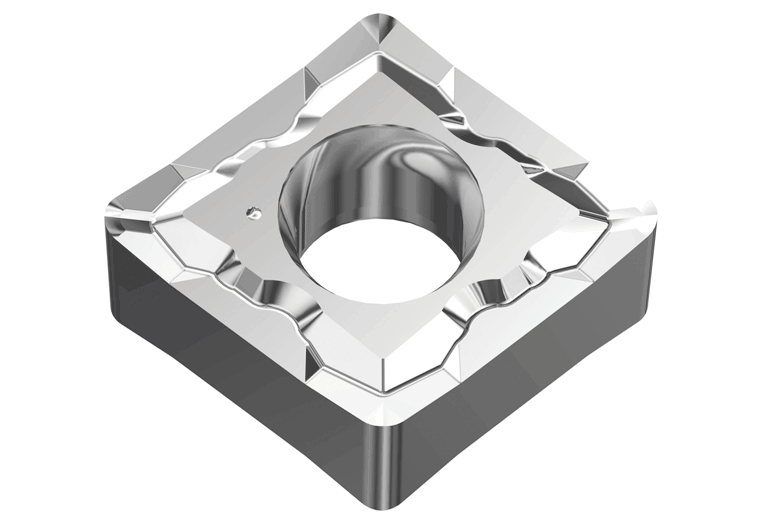

TaeguTec Platter CNGG120404ML K10

AVN varenr.: CNGG120404MLK10

Artikel nummer: CNGG120404MLK10

Cutting Speed for: CNGG 120404 ML K10

ISO	Material	Material Description	Material Condition	Cutting Speed Recommendations
K	15	Grey cast iron (GG)	Pearlitic/ferritic :180	110-180 m/min
K	16	Grey cast iron (GG)	Pearlitic/martensiti :260	95-140 m/min
K	17	Nodular cast iron (GGG)	Ferritic :160	95-135 m/min
K	18	Nodular cast iron (GGG)	Pearlitic :250	90-125 m/min
K	19	Malleable cast iron.	Ferritic :130	110-140 m/min
K	20	Malleable cast iron.	Pearlitic :230	90-125 m/min
N	21	Aluminum-wrought alloy.	Not cureable : 60	200-1000 m/min
N	22	Aluminum-wrought alloy.	Cured :100	200-1000 m/min
N	23	Aluminum-cast, alloyed <12% Si.	Not cureable : 75	50-400 m/min
N	24	Aluminum-cast, alloyed.	Cured : 90	50-500 m/min
N	25	Aluminum-cast, alloyed >12% Si.	High temperature :130	40-350 m/min
N	26	Copper alloys >1% pb.	Free cutting :110	50-500 m/min
N	27	Copper alloys.	Brass : 90	50-500 m/min
N	28	Copper alloys.	Electrolitic copper :100	30-300 m/min
N	29	Non metallic.	Duro& fiber plastics : 60	50-300 m/min
N	30	Non metallic	Hard rubber : 55	50-150 m/min
S	31	High temp. alloys Fe based.	Annealed :200	55-85 m/min
S	32	High temp. alloys Fe based.	Cured :280	40-65 m/min
S	33	High temp. alloys. Ni or Co based.	Annealed :250	32-55 m/min
S	34	High temp. alloys. Ni or Co based.	Cured :350	21-40 m/min
S	35	High temp. alloys. Ni or Co based.	Castr :320	16-26 m/min
S	36	Titanium Ti alloys.	:310	50-75 m/min
S	37	Titanium Ti alloys.	Alpha+beta alloys cu :310	45-70 m/min
