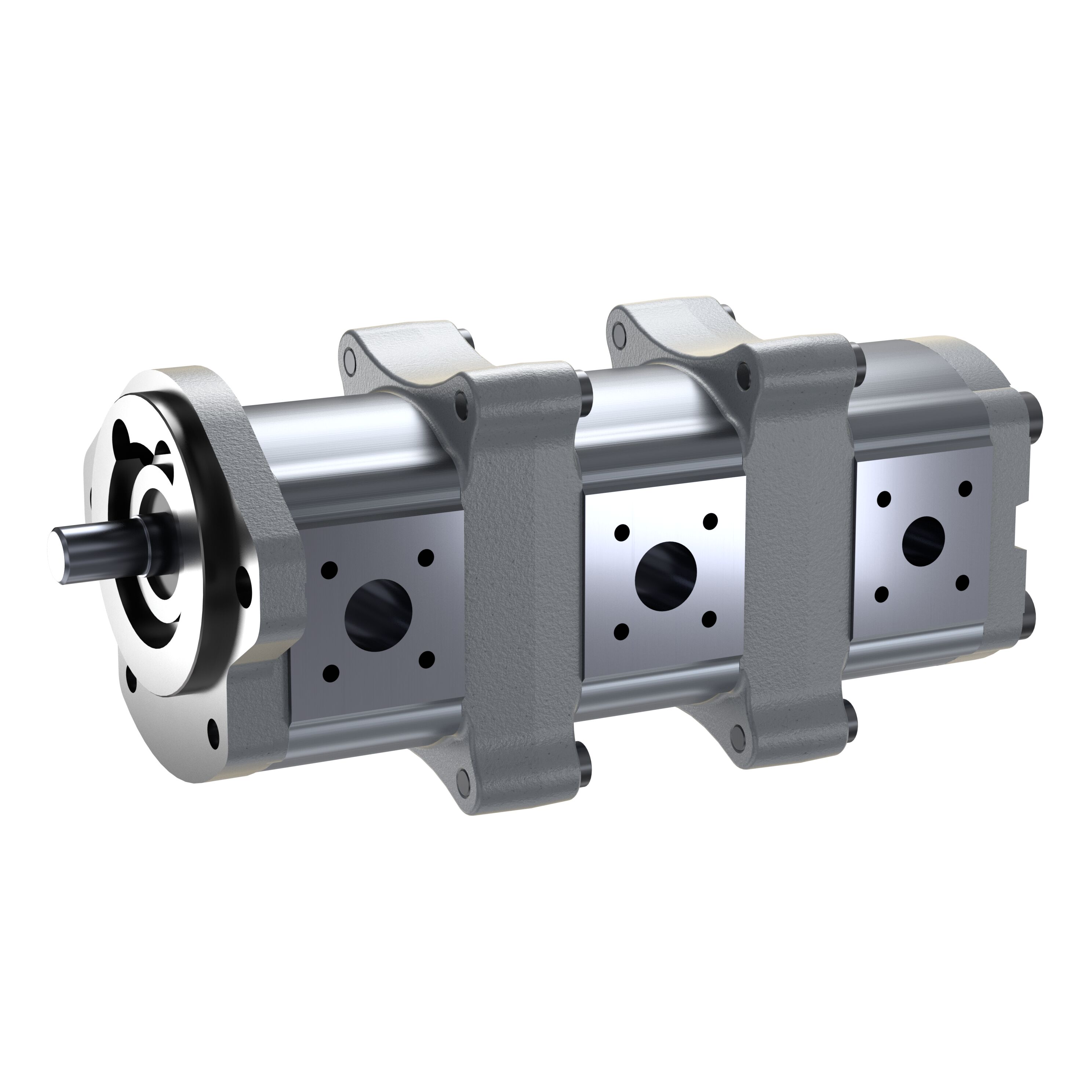

HYDRAULIC GEAR PUMP AZPFFF-12-008/008/005LRR202020KB-S9996
R919000319
Udsolgt
Information
| Direction of rotation | anti clockwise rotation |
| Drive shaft | Splined shaft SAE J744 16-4 (9T 16/32DP) |
| External gear unit | External gear unit |
| External gear unit function | Pump |
| Front cover | SAE J744 82-2 (A) |
| Housing material | Aluminum |
| Iteration | 6 |
| Line connection | Square flange DIN 3901/3902 |
| Line connection PU2 | Square flange DIN 3901/3902 |
| Line connection PU3 | Square flange DIN 3901/3902 |
| Long Description | The key task of external gear pumps is to convert mechanical energy (torque and rotational speed) into hydraulic energy (flow and pressure). To avoid unnecessarily high heat losses, units with high efficiencies are sought after. These are realized by means of pressure-dependent gap sealing and high-precision manufacturing technology.Consistent high quality based on large-volume productionDrive shafts according to ISO or SAE and customer specific solutionsLong service lifeSlide bearings for high loadsPort connections: flanged or threaded |
| Max. flow (#2) | 20.0 l/min |
| Max. flow PU2 | 20.0 l/min |
| Max. flow PU3 | 12.5 l/min |
| Maximum intermittent pressure pump unit 1 | 200 bar |
| Maximum intermittent pressure pump unit 2 | 200 bar |
| Maximum rotational speed | 2500 rpm |
| Noise level | Standard noise level |
| Rear cover | Standard |
| Sealing material | NBR, WDR in FKM |
| Series | Model F (4 ... 28 cm³/rev) |
| Series PU2 | Model F (4 ... 28 cm³/rev) |
| Series PU3 | Model F (4 ... 28 cm³/rev) |
| Short Description | HYDRAULIC GEAR PUMP AZPFFF-12-008/008/005LRR202020KB-S9996 |
| Size (geometric displacement) | 8 cm³/rev |
| Size (geometric displacement) PU2 | 8 cm³/rev |
| Size (geometric displacement) PU3 | 5 cm³/rev |
| Special version | Deviations from catalogue standards, see drawing |
| Unit version | Bearing diameter Ø 18mm |
| Version | corrosion-resistant, pinned |
| Weight | 9.7 kg |
