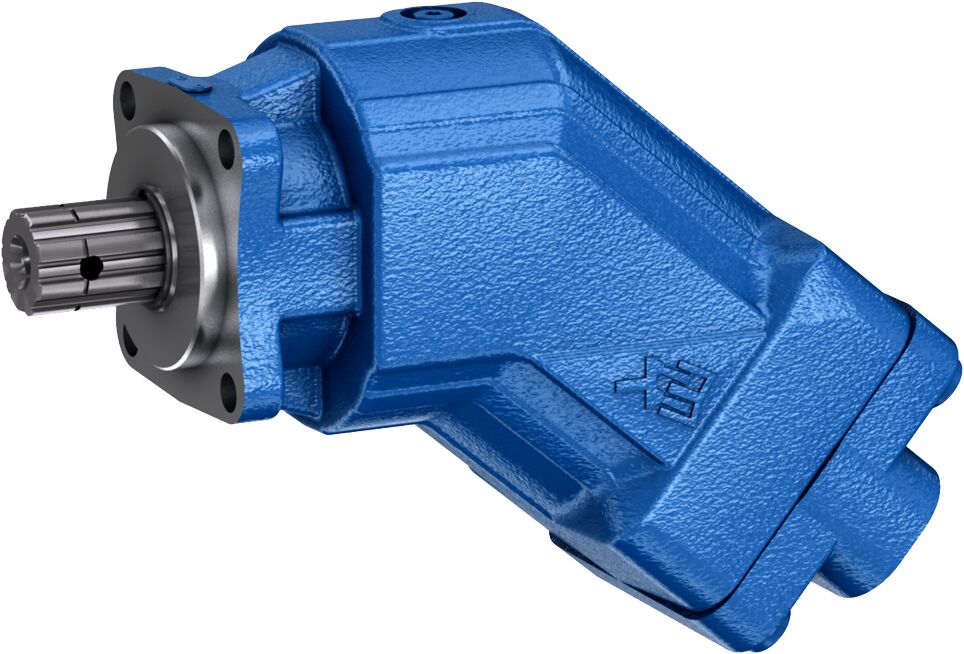

AXIAL-PISTON PUMP A17FO023/10NLWK0E81-0
R902162388
Udsolgt
Information
| Additional functions | without |
| Classification society (external) | Standard without acceptance |
| Connection and fastening threads | metric |
| Direction of rotation (#1) | counter-clockwise |
| Iteration | 6 |
| Long Description | A17FNO is a displacement pump with axial tapered piston transmission in bent axis design for hydrostatic drives in the open circuit. The pump has been especially designed for use in commercial vehicles, e.g. street tippers, dump trucks, HGV loading cranes, tankers, municipal vehicles. The flow is proportional to the drive speed and the displacement.Simple adjustment of rotatonal directionFlange and shaft designed for direct mounting on the power take-off of commercial vehiclesOptimized weight by cast aluminum housingExcellent suction characteristicsLong service lifeHigh total efficiencyNo drain line requiredLow operating noise |
| Max. flow (#1) | 67.0 l/min |
| Max. operating pressure | 350.0 bar |
| Max. rotational speed | 2920 |
| Mounting flange | ISO 7653-1985 |
| Paint/base coat | without |
| Paint/top coat | without |
| Port A | DIN ISO 228 - G 1/2 open |
| Port plate for service lines | Threaded port A a. S rear |
| Port R | DIN 3852 M10x1 plugged |
| Product (axial piston unit) | A17FO |
| Product family | A17F |
| Sealing material (#2) | FKM (fluorocarbon rubber) 2 WDR |
| Series (#1) | 10 |
| Shaft end (#1) | Splined shaft similar to DIN ISO 14 |
| Short Description | AXIAL-PISTON PUMP A17FO023/10NLWK0E81-0 |
| Size (displacement) | 23 cm³ |
| Suction adapter | without |
| Suction port S | DIN ISO 228 - G 3/4 open |
| Test certificate | without |
| Test certificate language code | Without |
| Type of actuation | Pump, open circuit |
| Weight | 6.814 kg |
