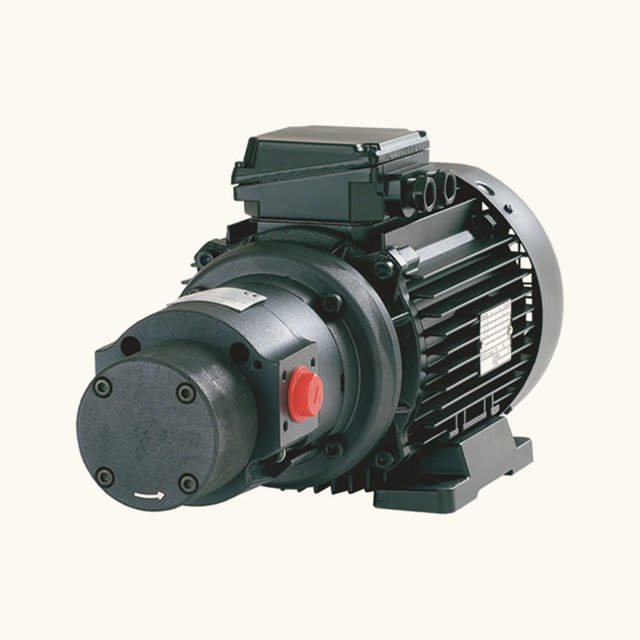

QPM3 10-8-0,25 230/400-50 PUMP/STD-MOTOR UNIT
58631001
Udsolgt
Information
| Afdeling | Accumulator and Cooler Division - Europe |
| Applikation | Power Units, Lubrication Systems, General industry |
| Body materiale | Pump housing/pump cover aluminium with anodized surfaces |
| Bredde | 157 mm |
| Bypassvalg medfølger | No bypass |
| For væsketype | Mineral oil, max 800cSt |
| Højde | 195 mm |
| Konstruktionsmaterialer | Steel |
| Længde | 368 mm |
| Maks. driftstryk | 10 bar |
| Maks. flowhastighed | 10 l/min |
| Maks. fortrængning | n.a. |
| Maksimal vakuumflowhastighed | n.a. |
| Maksimal væsketemperatur | 100 °C |
| Medie | Mineral, synthetic and vegetable oils. Consult Parker for other fluids. |
| Motortype | 3-Phase |
| Nominelt flow (lpm) | 10/12 (50/60 Hz) |
| Portstørrelse | Inlet G 1 1/2, Outlet G1 inch |
| Produkttype | QPM3 10-8-0,25 230/400-50 |
| Pumpetype | Gerotor |
| Støjniveau | 65 |
| Størrelse | 10 |
| Udgangsklassificering for motorstrøm | 0,25 |
| Vægt | 13 kg |
