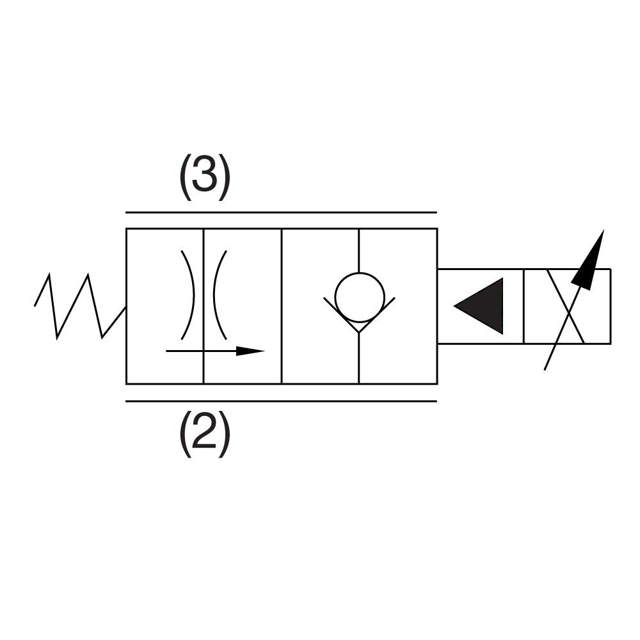

PROP. FLOW CONTROL W/ COMP.
FAPC161NN
Udsolgt
Information
| Afdeling | Hydraulic Cartridge Systems Division |
| Aktiveringstype | Electrical |
| Betjeningstype | Solenoid operated |
| Body materiale | N/A |
| Driftstemperatur | -30 to +250 �F |
| Filters effektivitetsklassificering | ISO 4406 18/16/13, SAE Class 4 |
| Flowhastighed | 83 L/min |
| Flowretning | Top to Side (3 - 2) |
| For væsketype | Mineral-based or synthetic hydraulic fluids |
| Forbindelsestype | N/A |
| Form størrelse | C16-3 |
| Frekvens | 100-400 Hz |
| Funktion | Proportional Pressure Compensated Flow Control/Rgulator |
| Hysterese | < 10% |
| Installationsmoment | 80-85 lb-ft |
| Konfiguration | Normally Open |
| Konfiguration | Normally Open |
| Lækagehastighed | 5 @ 3000 PSI (210 BAR) drops/min |
| Maks. driftstemperatur | +121 �C |
| Maks. driftstryk | 210 bar |
| Maks. flowhastighed | 83 L/min |
| Maks. flowhastighed | 22 GAL/MIN, 83 L/MIN |
| Maksimal kinematisk viskositet | 45-2000 SSU (6 to 420 cSt) |
| Maksimalt indløbstryktrin | 210 bar |
| Mindste driftstemperatur | -34 �C |
| Mindste trykdifferens | 34 bar |
| Pakningsmateriale | Nitrile |
| Pakningsmateriale | Nitrile |
| partId (right) | 2395249 |
| Spolemøtriks tilspændingsmoment | Finger Tight Nm |
| Spoletype | 5/8" Super Coil Low Watt (CAS) |
| Strøm | Max: 1.5 @ 12 VDC, 0.75 @ 24 VDC A |
| Strømforbrug | 18 W |
| Tilslutningsstørrelse | N/A |
| Ventilmateriale | All parts steel. All operating parts hardened steel |
| Vægt | 1.08 lb |
